WEB/ERMaster
[ERMaster] shoppingmall - main
hvoon
2022. 9. 10. 12:03
Run 시작페이지
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>index.jsp</title>
</head>
<body>
<%
response.sendRedirect("shop.do?command=index");
%>
</body>
</html>
Servlet
package com.sam.shop.controller;
import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import com.sam.shop.controller.action.Action;
@WebServlet("/shop.do")
public class ShoppingMallServlet extends HttpServlet {
private static final long serialVersionUID = 1L;
public ShoppingMallServlet() {
// TODO Auto-generated constructor stub
}
protected void doGet(HttpServletRequest request,
HttpServletResponse response)
throws ServletException, IOException {
request.setCharacterEncoding("UTF-8");
String command=request.getParameter("command");
ActionFactory af=ActionFactory.getInstance();
Action ac=af.getAction(command);
if(ac!=null) ac.execute(request,response);
else System.out.println("ac=null");
}
protected void doPost(HttpServletRequest request,
HttpServletResponse response)
throws ServletException, IOException {
doGet(request, response);
}
}
ActionFactory
package com.sam.shop.controller;
import com.sam.shop.controller.action.Action;
public class ActionFactory {
private ActionFactory() {}
private static ActionFactory itc = new ActionFactory();
public static ActionFactory getInstance() { return itc; }
public Action getAction(String command) {
Action ac = null;
// 이 안에 command가 실행될 코드 들어감
// *배경색 줄무늬로 표시*
return ac;
}
}
Action interface
package com.sam.shop.controller.action;
import java.io.IOException;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
public interface Action {
public void execute(HttpServletRequest request,
HttpServletResponse response)
throws ServletException, IOException;
}

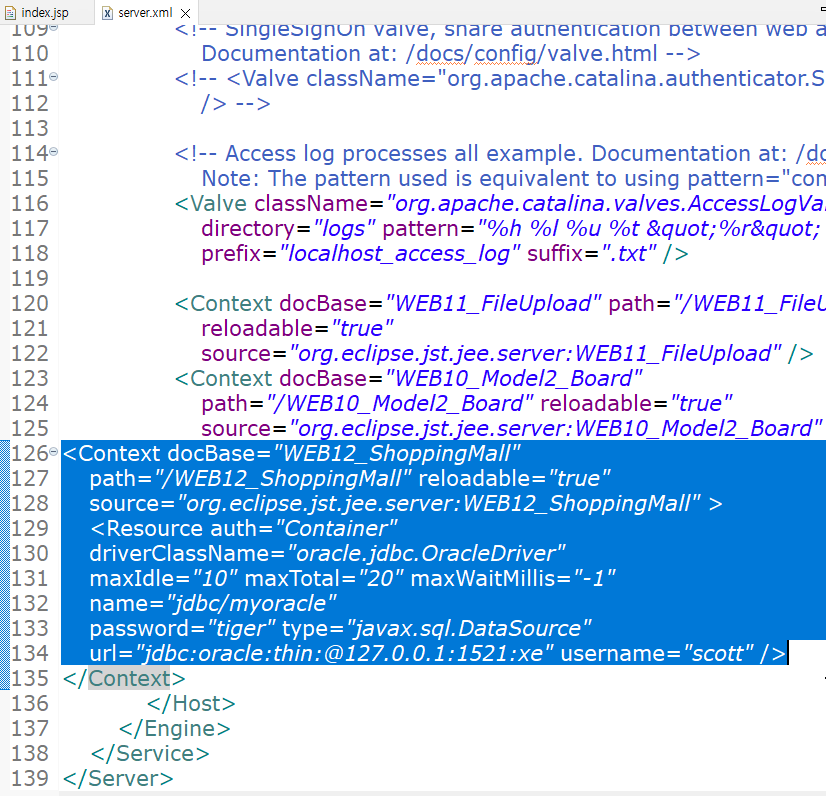

Server에 Resource 코드 추가
<Context docBase="WEB12_ShoppingMall"
path="/WEB12_ShoppingMall" reloadable="true"
source="org.eclipse.jst.jee.server:WEB12_ShoppingMall">
<Resource auth="Container"
driverClassName="oracle.jdbc.OracleDriver"
maxIdle="10" maxTotal="20" maxWaitMillis="-1"
name="jdbc/myoracle"
password="tiger" type="javax.sql.DataSource"
url="jdbc:oracle:thin:@127.0.0.1:1521:xe" username="scott"/>
</Context>
*jsp 파일 코드는 배경 검은색으로 표시
쇼핑몰 메인 페이지 제작
- 페이지 상단 제작
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ taglib prefix="fmt" uri="http://java.sun.com/jsp/jstl/fmt" %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>hearder.jsp</title>
<link href="css/shopping.css" rel="stylesheet">
</head>
<body>
<div id="wrap">
<header>
<!-- 로고, 주 상단 메뉴, 카테고리 메뉴가 표시되는 영역 -->
<div id="logo">
<a href="">
<img src="images/logo.png" width="180" height="100">
</a>
</div>
<nav id="top_menu"><!-- LOGIN CART MYPAGE 등등 -->
<ul>
<c:choose>
<c:when test="${empty loginUser}">
<li><a href="">LOGIN</a></li>
<li><a href="">JOIN</a></li>
</c:when>
<c:otherwise>
<li>${loginUser.name}(${loginUser.id})</li>
<li><a href="">정보수정</a></li>
<li><a href="">LOGOUT</a></li>
</c:otherwise>
</c:choose>
<li><a href="">CART</a></li>
<li><a href="">MY PAGE</a></li>
<li><a href="">Q&A</a></li>
</ul>
</nav>
<!-- 카테고리 메뉴 Heels Boots Sandals ...등 -->
<nav id="catagory_menu">
<ul>
<li><a href="">Heels</a></li>
<li><a href="">Boots</a></li>
<li><a href="">Sandals</a></li>
<li><a href="">Sneakers</a></li>
<li><a href="">Sleeper</a></li>
<li><a href="">On Sale</a></li>
</ul>
</nav>
</header>
</body>
</html>2. 쇼핑몰 하단 제작
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%-- footer.jsp --%>
<div class="clear"></div>
<footer>
<hr>
<div id="copy">
All contents Copyright 2022 HJKang.co Inc. all rights
reserved<br>Content mail : abc@abc.com Tel : +82 02 1234 1234
Fax : +82 02 1233 1233</div>
</footer>
</div>
</body>
</html>3. 쇼핑몰 메인 제작
<%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8"%>
<%-- main.jsp --%>
<%@ include file="header.jsp" %>
<!-- 메인 이미지 시작: 각 기능별 페이지를 대표하는 이미지 -->
<div id="main_img">
<img src="images/main_img.jpg"
style="border-radius:20px 20px 20px 20px;
border:2px solid white;">
</div>
<!-- 신상품 -->
<h2>New Item</h2>
<div id="bestProduct">
<c:forEach items="${newList}" var="productVO">
<div id="item"><!-- 상품 한개, 한칸 -->
<a href="">
<img src="product_images/${productVO.image }"/>
<h3>${productVO.name }
- <fmt:formatNumber value="${productVO.price2}"
type="currency"/></h3>
</a>
</div>
</c:forEach>
</div>
<!-- 베스트 상품 -->
<h2>Best Item</h2>
<div id="bestProduct">
<c:forEach items="${bestList}" var="productVO">
<div id="item"><!-- 상품 한개, 한칸 -->
<a href="">
<img src="product_images/${productVO.image }"/>
<h3>${productVO.name }
- <fmt:formatNumber value="${productVO.price2}"
type="currency"/></h3>
</a>
</div>
</c:forEach>
</div>
<%@ include file="footer.jsp" %>
ActionFatory에 index command 추가
if(command.equals("index")) ac=new IndexAction();package com.sam.shop.controller.action;
import java.io.IOException;
import java.util.ArrayList;
import javax.servlet.RequestDispatcher;
import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
public class IndexAction implements Action {
@Override
public void execute(HttpServletRequest request,
HttpServletResponse response)
throws ServletException, IOException {
// 베스트 상품과 신상품 목록을 조회&리퀘스에 담아서 main.jsp로 이동
ProductDao pdao = ProductDao.getInstance();
ArrayList<ProductVO> bestList = pdao.getBestList();
ArrayList<ProductVO> newList = pdao.getNewList();
request.setAttribute("bestList", bestList);
request.setAttribute("newList", newList);
RequestDispatcher dispatcher
= request.getRequestDispatcher("main.jsp");
dispatcher.forward(request, response);
}
}
Product Dto
package com.sam.shop.dto;
import java.sql.Timestamp;
public class ProductVO {
private Integer pseq;
private String name;
private String kind;
private Integer price1;
private Integer price2;
private Integer price3;
private String content;
private String image;
private String useyn;
private String bestyn;
private Timestamp indate;
public Integer getPseq() {
return pseq;
}
public void setPseq(Integer pseq) {
this.pseq = pseq;
}
public String getName() {
return name;
}
public void setName(String name) {
this.name = name;
}
public String getKind() {
return kind;
}
public void setKind(String kind) {
this.kind = kind;
}
public Integer getPrice1() {
return price1;
}
public void setPrice1(Integer price1) {
this.price1 = price1;
}
public Integer getPrice2() {
return price2;
}
public void setPrice2(Integer price2) {
this.price2 = price2;
}
public Integer getPrice3() {
return price3;
}
public void setPrice3(Integer price3) {
this.price3 = price3;
}
public String getContent() {
return content;
}
public void setContent(String content) {
this.content = content;
}
public String getImage() {
return image;
}
public void setImage(String image) {
this.image = image;
}
public String getUseyn() {
return useyn;
}
public void setUseyn(String useyn) {
this.useyn = useyn;
}
public String getBestyn() {
return bestyn;
}
public void setBestyn(String bestyn) {
this.bestyn = bestyn;
}
public Timestamp getIndate() {
return indate;
}
public void setIndate(Timestamp indate) {
this.indate = indate;
}
}
Product Dao
package com.sam.shop.dao;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
public class ProductDao {
private ProductDao() {}
private static ProductDao itc = new ProductDao();
public static ProductDao getInstance() { return itc; }
Connection con=null;
PreparedStatement pstmt=null;
ResultSet rs=null;
}
ProductDao에 getBestList, getNewList 추가
public ArrayList<ProductVO> getBestList() {
ArrayList<ProductVO> list = new ArrayList<ProductVO>();
String sql = "select * from best_pro_view";
con = Dbman.getConnection();
try {
pstmt = con.prepareStatement(sql);
rs = pstmt.executeQuery();
while( rs.next() ) {
ProductVO pvo = new ProductVO();
pvo.setPseq( rs.getInt("pseq") );
pvo.setName( rs.getString("name") );
pvo.setPrice2( rs.getInt("price2") );
pvo.setImage( rs.getString("image") );
list.add(pvo);
}
} catch (SQLException e) { e.printStackTrace();
} finally { Dbman.close(con, pstmt, rs); }
return list;
}
public ArrayList<ProductVO> getNewList() {
ArrayList<ProductVO> list = new ArrayList<ProductVO>();
String sql = "select * from new_pro_view";
con = Dbman.getConnection();
try {
pstmt = con.prepareStatement(sql);
rs = pstmt.executeQuery();
while( rs.next() ) {
ProductVO pvo = new ProductVO();
pvo.setPseq( rs.getInt("pseq") );
pvo.setName( rs.getString("name") );
pvo.setPrice2( rs.getInt("price2") );
pvo.setImage( rs.getString("image") );
list.add(pvo);
}
} catch (SQLException e) { e.printStackTrace();
} finally { Dbman.close(con, pstmt, rs); }
return list;
}
css
body{background:#FDE8FF; margin:0; padding:0;
font-size:0.75em;}
#wrap{width:971px; text-align:left; margin:0 auto;
background:#FDE8FF; min-height:780px;}
#logo{float:left; width:180px; height:100px; margin:40px 0 0 40px;}
nav#top_menu{float:right; margin:20px 64px 0 0;}
nav#top_menu ul li{display:block; height:30px; float:left;
font-family:Verdana; font-size:130%;}
nav#top_menu a{text-decoration:none; display:inline-block;
width:100px; text-align:center; color:#6F0C78;
font-weight:bold;}
nav#top_menu a:hover{color:blue; font-weight:bold;}
nav#catagory_menu{margin:20px 0; float:right;}
nav#catagory_menu ul{list-style:none; font-family:Verdana;}
nav#catagory_menu ul li{float:left; margin:0 15px; font-size:14pt;}
nav#catagory_menu a{display:block; height:20px; padding:10px;
text-decoration:none; color:#6F0C78;}
nav#catagory_menu a:hover{background-repeat:repeat-x;
background-position:bottom;
background-image:url(../images/purple.gif);}
.clear{clear:both;}
footer{margin:10px 0 0 0; height:70px;
background-image:url(../images/bottom_logo.png);
background-repeat:no-repeat; background-position:60px center;}
footer #copy{margin:5px 0 0 300px; width:600px;}
#bestProduct{border:solid 3px #FFFFFF; border-radius:0px;
width:910px; min-height:260px; background:#F4CBFA;
padding:10px; text-align:center; margin:0 auto;}
#item{width:200px; float:left; margin:0 13px; text-align:center;}
#item img{width:190px; height:200px; overflow:hidden;
border-radius:20px 20px 20px 20px; border:3px solid gray;}
#main_img{text-align:center;}
#main_img img{margin:9px 0 0 0;}
생성된 메인 화면
